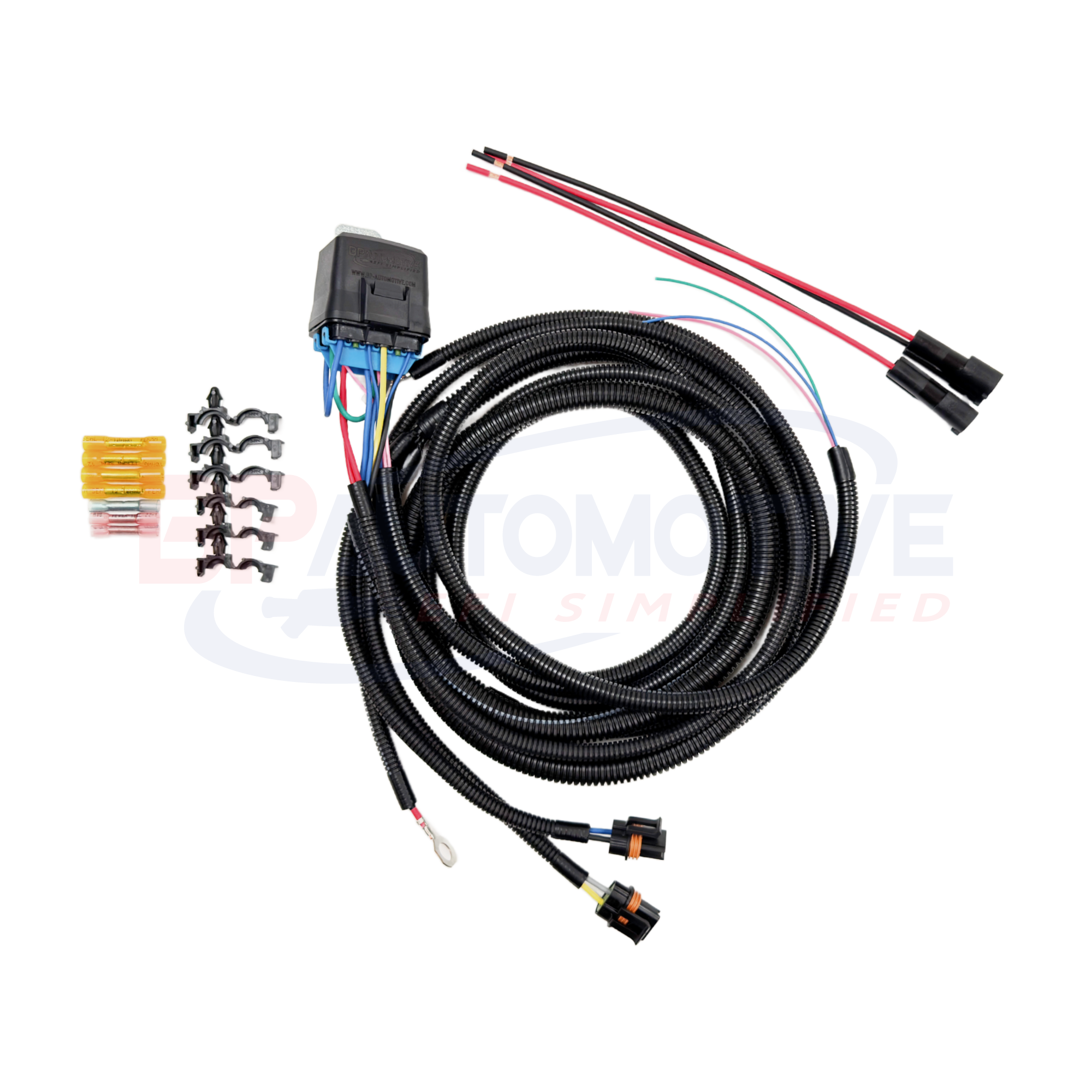

Sealed Dual Fan Two Speed Fan Relay Kit (SRK-003)
Factory-style two speed control for dual electric fans. Just like GM LS vehicles, this kit uses three relays to run your fans in series-parallel. On low speed, both fans run together at low speed. On high speed, both fans run together at full speed. That means less inrush current on your electrical system than two relays turning each fan on at high speed.
SRK-003 replaces our older DFK-002 kit. It works the same and has a new sealed fuse block.
IT IS THE CUSTOMER’S RESPONSIBILITY TO ENSURE THAT EACH FAN DRAWS LESS THAN 30 AMP, INCLUDING STARTUP! BP AUTOMOTIVE CANNOT VERIFY THIS FOR YOU!
Technical Specifications
- Max Draw: 30 amp per fan
- Relays: 3 x 30 amp, in a sealed fuse block
- Trigger: Ground triggered (low speed and high speed control wires)
- Wire: 10 GA power and ground, 12 GA fan wiring, color-coded TXL (cross-linked) wire
- Fan Connectors: Plug and play with 1993-2002 LS1/LT1/TPI F-Body fans. Sealed pigtails are included for other 2-wire fans.
- Hookup: Easy 3 wire hookup to BP Automotive standalone swap harnesses. Can also be used in universal applications.
- Includes: Mounting bracket, instructions (QR code on the box)
- Loom: Corrugated loom (not offered in braided loom)
- Made In The USA at our facility in Kentucky, built with production tooling
Important
- 2-wire fans only. PWM/Brushless fans won’t work. It also won’t work with 3-wire fans, a single 2-speed brushed fan (use SRK-002 for that), or 2005 and newer GM truck/SUV fans (use 1017).
- Gen V: This kit will not work with Gen V unless you use the PAC-2800BT.
- Tuning: Fan control has to be turned on in your tune, and it must be set for fan relays (not a PWM fan). PCMs/ECMs tuned by BP Automotive come with dual electric fans enabled. We can’t speak to a tune we didn’t do, so have your tuner check the fan settings, or we can tune it for you.
- Mount it in the engine bay, close to the battery. Not under the dash.
- Locking relay terminals. Wiggle the relay as you pull to remove it.
Common Questions
Will it work with my fans?
Yes, if each fan draws less than 30 amp, including startup. Check with your fan manufacturer. For fans up to 40 amp, use two SRK-001 kits. For GM truck/SUV fans, use 1017.
Is it plug and play with my fans?
Only with 1993-2002 LS1/LT1/TPI F-Body (Camaro/Firebird) fans. For other 2-wire fans, use the sealed pigtails included in the kit.
SRK-002 or SRK-003?
The only difference is speed. SRK-002 is single speed (each fan turns on at high speed on its own). SRK-003 is two speed (both fans low, then both fans high). Both are rated at 30 amp per fan.
How does it hook up to my BP harness?
Match the colors. The Dark Green and Dark Blue wires connect to the Dark Green and Dark Blue fan relay control wires on your harness. Do NOT join the Dark Green and Dark Blue wires together. On Gen III and Gen IV harnesses, both Pink wires on the harness connect to the one Pink wire on the kit. Gen V will not work unless you use the PAC-2800BT.
Can I use it with a factory harness?
Yes. The control wires need a ground to trigger the relays. Connect them to the Fan 1 and Fan 2 relay control circuits at the PCM/ECM. PCM terminals are not included.
Can I use my A/C trinary switch?
A trinary switch can only control low speed. With a BP standalone harness and a GM A/C pressure sensor, you don’t need a trinary switch. The PCM/ECM controls the fans for A/C.
Where are the instructions?
Scan the QR code on the box. We do not release instructions or wiring diagrams before purchase, but we are happy to answer questions.
